SPECIFICATIONS

Brand Name: MI YU KOUNG

Choice: yes

Condition: New

Hign-concerned Chemical: None

Model Number: 123

Origin: Mainland China

Type: Module

Product Features:

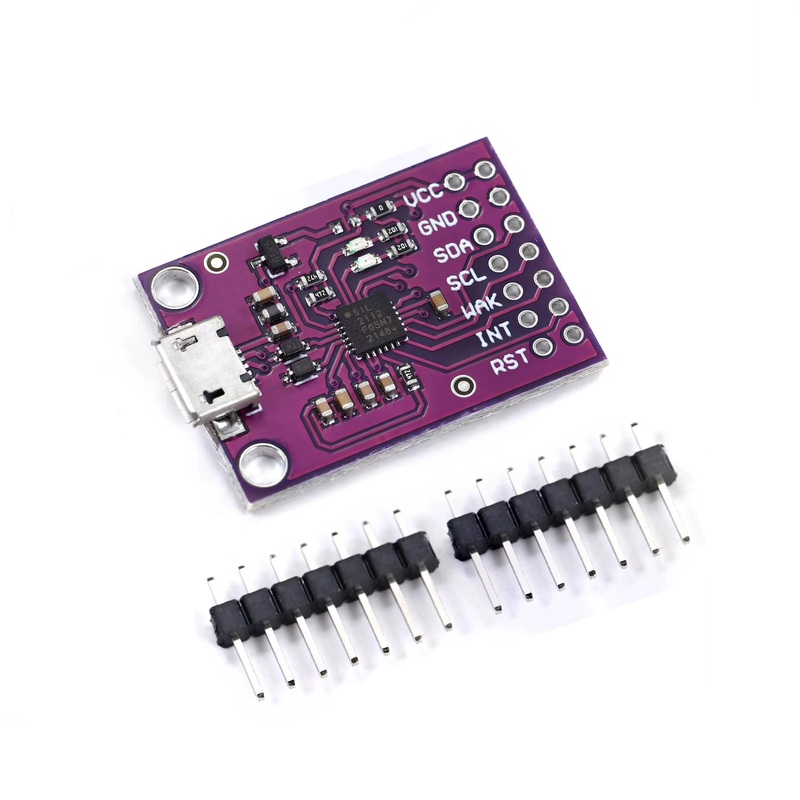

CP2112 highly integrated USB to SMBus bridge controller integrates a USB2.0 full-speed function controller, USB transceiver oscillator and 8 GP10 pins. All customization and configuration options can be selected through a simple GUI-based configurator, standard HID class devices do not require complex firmware and driver development, and the CP2112 device enables fast USB connectivity with minimal development effort.

Product parameters:

1.USB bus powered 4.0 sub 5.25V

2. Self-powered 3.0 to 3.6V, I/O voltage 1.8V to VDD

3. Working environment temperature: -40~85

4. On-chip reset circuit, on-chip voltage regulator: 3.45V output

5. Compliant with USB specification 2.0 standard; full speed (12Mbps)

6. Support USB suspend state via SUSPEND pin

7. Integrated 194-byte one-time programmable ROM for storing customizable product information

8.512 bytes SMBus data buffer, configurable clock speed Device address 7-bit value is CP2112 slave device address

9. Windows, Mac and Linux HID to SMBus library API for rapid application development, Open Access Interface Specification.

10.8 GPIOs configurable as input/output and open-drain/push-pull, configurable clock output for external devices 48MHz to 94KHZ, read/write SMBus device toggle LED

11. Application areas: portable controllers, USB dongles, data logging
