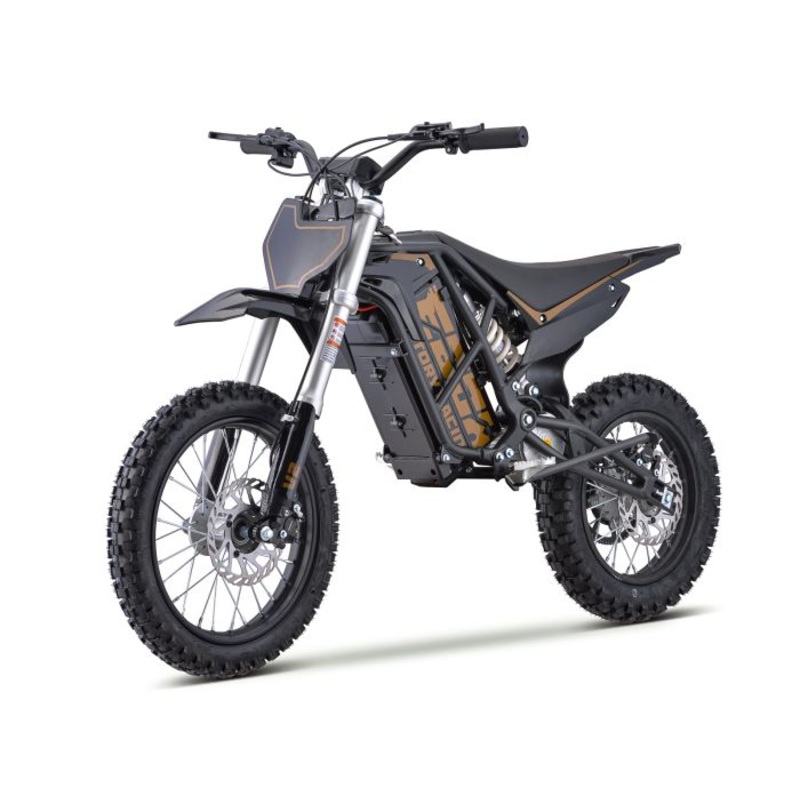

EBOX – Electric Bike Off-road Motocross

Sometimes we just want to get loose, run for the hills and escape the bullshit, preferably at high-speed. For that we designed EBOX2.

Not content with the performance from the over-boosted 1.6 kw EBOX1, we decided to tweak the chassis and install an over-boosted 2 kw rated powertrain that peaks at over 3 kw! (As tested and reviewed by Suronster on YouTube). These modifications catapult the EBOX2 into electric pit bike class leading territory.

Featuring extended upside-down forks and 14/12 wheels, the chassis is now suitable for slightly larger (or crazier) riders. **We recommend considering some BMX style bars or pro taper minibike bars if you are a taller rider.

Created by our engineers and designers to be lightweight, powerful and outperform any other bike in its class on the market.

EBOX2 features a 2 KW lithium battery / brushless motor combination that packs an astonishing punch. EBOX2 can be controlled to perfection, dialled down for entry level riding, and turned up when you are ready to clear those doubles or pop the front wheel up for some combo practise.

Need more? As proven by Surronster, this bike can be tuned to release even more power from the stock powertrain with a simple controller upgrade. (please note this upgrade is not currently warranty approved).

SPECS

Frame type Double Cradle Front wheel size 14″ Rear wheel size 12″ Front brake Hydraulic Disc Front disc 180mm Rear brake Hydraulic Disc Rear disc 180mm Front tyre 14″ x 2.27″ Rear tyre 12″ x 3″ Chain 219H Gearing Front 10T, Rear 70T Max load 85kg Fork type USD Shock type Mono shock Handlebar Alloy Motor voltage 60V Peak power 2.0KW (2.6hp) Max RPM 4,400 Battery 60V 18.2Ah Lithium Controller output 42A Charger AC 110-240V, Output: 54.6V, 2A

Tech

Charge time 5-6 hours Range per charge 21 – 24 Miles Top speed 32 MPH External adjustability Top speed, Acceleration Frame construction High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension Wheelbase 945mm Ground clearance 275mm Seat height 66cm Weight 42.5kg
