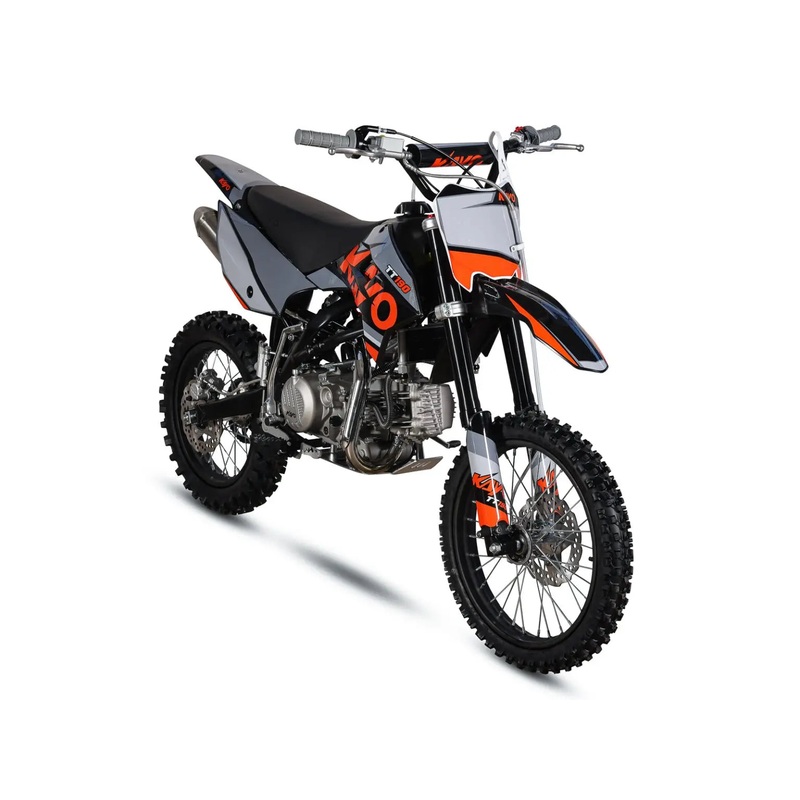

The driving force behind the TT190 is the well-proven Zhongshen 190cc, an engine that has dominated pit bike racing all over the world for many years. This race-focused powertrain, paired with Kayos highly capable chassis, creates a well-engineered machine designed to dominate the competition and guarantee the hole-shot when tearing up the dirt with your mates.

To put the power down, the TT190 comes with some gnarly Kenda-inspired MX-pattern tyres. The soundtrack is provided by the race-engineered, lightweight stainless steel Kayo exhaust, and to keep that monster engine breathing cleanly, the TT190 features a fully enclosed airbox. The huge rear suspension travel is class-leading on this bikeall in all, nothing comes close to this entry-level fire-breathing monster.

Kayo stands as the worlds largest pit bike manufacturer, outproducing Honda with cutting-edge robotic welding lines that keep up with massive global demand.

The TT190 takes advantage of the gigantic leaps Kayo has made in the industry over the past 20 yearsprecision welding, the best available component suppliers, insane attention to detail, and robustness to match the Japanese manufacturers.

Nothing else on the market is this meticulously designedand thats before you even take in the striking plastics and graphics that set the TT190 apart as something truly special.

SPECIFICATION

Distro Stomp Distribution Ltd Manufacturer KAYO Model TT190 Warranty 30 days parts only warranty

ENGINE

Engine ZS190, 4-Stroke, Air Cooled Valves SOHC, 2 valve Displacement 187.2cc Bore x Stroke 62.0 x 62.0mm Compression Ratio 11.0:1 Fuel System Carburetor Maximum Power 12 kw @ 9500rpm Maximum Torque 13 Nm @ 8000rpmm Clutch Wet, 5 disc Ignition CDI Final Drive 428 chain

CHASSIS

Frame Design Cradle frame Rear Subframe Design Steel subframe Swing Arm Steel 430mm Footpegs Pro Handlebar Steel Exhaust KAYO Performance Silencer KAYO Performance Front Suspension 735mm Non-Adjustable Rear Suspension 360mm Non-Adjustable Front Rim Steel 17×1.6 Rear Rim Steel 14×2.15 Front Tyres 70/100-17 Rear Tyres 90/100-14 Front Brake Dual piston – 210 mm disc Rear Brake Single piston – 200 mm disc

DIMS & CAPACITY

Length 1780mm Width 750mm Height 1120mm Wheelbase 1220mm Ground Clearance 290mm Seat Height 855mm Dry Weight 81.0kg Fuel Capacity 5.5 litres Packing Size LWH 1560 x 380 x 735mm
