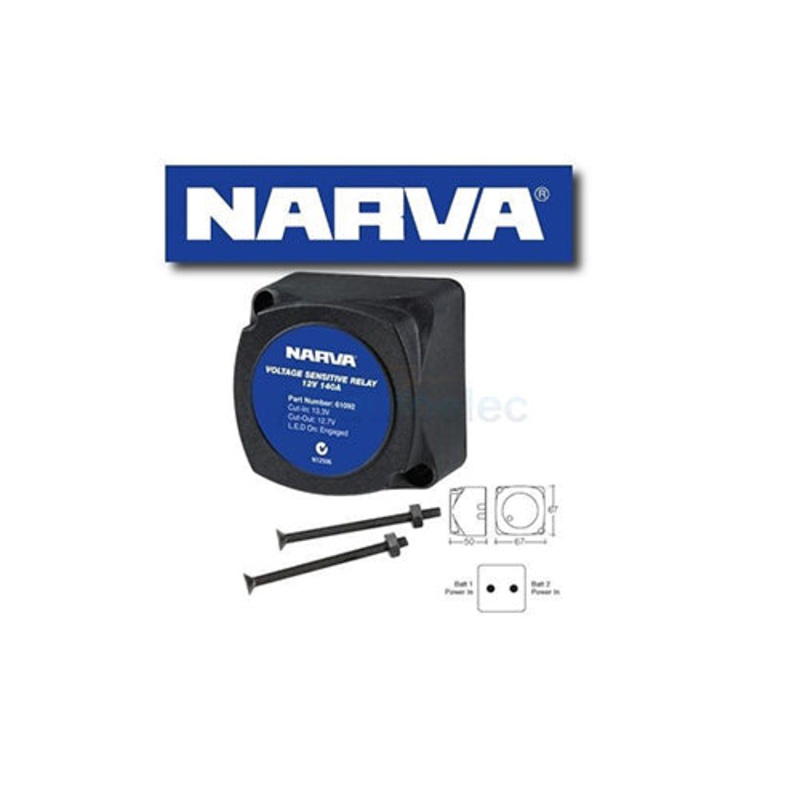

Narvas voltage Sensitive Relays (VSRs) are suitable for a wide variety of DC applications. VSRs sense the input voltage and automatically connect/disconnect the appliance or circuit at the set voltages. The cut-out has a 5 second delay preventing the relay from disconnecting during a momentary drop in voltage.

FEATURES
Sure protected
Weatherproof (IP65)
L.E.D Indicator (on/contact closed)
Microprocessor controlled

SPECIFICATIONS

Voltage12V
Charging current 140A Continuous, 160A Peak
Cut-in voltage 13.3V
Cut-out voltage 12.7V
Cut-out delay 5 second
Charge type Parallel
Control MCU
Mounting Surface/firewall
Current draw Charging 0.25A
Standing 5mA
Voltage drop Nil
Surge protection Built-in
Environmental protection IP65
Recommended fuse 150A
Minimum cable size 16mm2
Torque settings 6.5 N.m
