UPDATED TO IC35

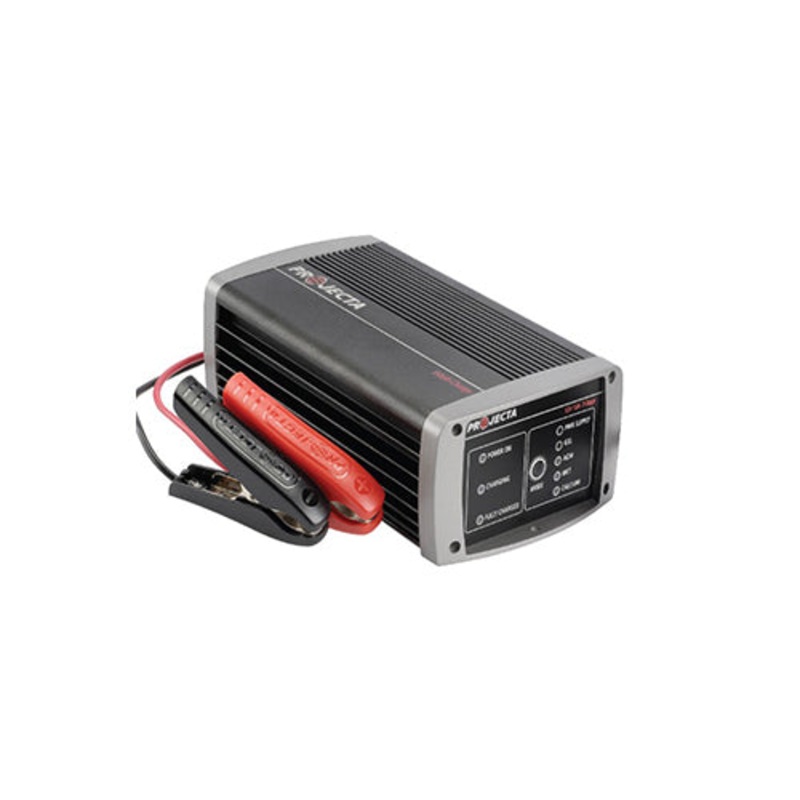

Projectas IC3500 seven stage charger is ideal for the power demands of large batteries found in caravans, boats and commercial vehicles. Adjustable for different battery sizes and includes temperature compensation probe for precise charging to match the conditions.

Projectas Intelli-Charge range of battery chargers are the most advanced lead acid battery charging solution we offer. Featuring world class 7 stage battery charging technology that is guaranteed to maximise performance as well as increase battery life of your battery.

Suitable for the professional or the user that demands much more from their batteries and how they are maintained.

Features at a Glance:

Remote Control Display: Control and monitor chargers performance from a remote control display. Battery charger and remote are synchronised fro operation.
Multi Chemistry Charging: User can set charging profile to suit each batteries chemistry type (GEL, AGM, Wet Cell and Calcium).
Float Charge Mode: Maintains the battery at 100% charger without overcharging or damaging the battery. Allowing for connection to the battery indefinitely without any damage to the cells.
Power Supply Mode: When selected appliances (or load) can safely be run from the battery. An appliance can also be run directly from the battery clamps if required. Such as using the charger as a memory saver when disconnecting battery from vehicle.
Polarity protection: Prevents the outputs from sparking sue to accidental reverse connection or shot circuits.
Over Temperature Protection: Temperature controlled fan and internal over temperature cut off feature.
Switch Mode Technology: Converting 240v AC to 12v using switch mode technology. Which creates a much more compact and powerful charger without sacrificing performance.

Specifications:

Type: 7 Stage
Input (Nominal): 240v AC 50Hz
Input Power: 1080w
Output Voltage: 12v
Output Current: 2, 8, 16, 35a
Minimum Start Voltage: 2.5v
Back Drain: 1mA
Deep Cycle Battery Range: 14-700Ah
Automotive Battery Range: 80-4200ccA
Marine Battery Range: 110-5800mcA
Battery Types: GEL, AGM, Wet Cell and Calcium
Size: 250 x 81 x 168
Weight: 2.6kg

Charge Control:

Desulphation: High frequency pulse charge up top 11v
Soft Start: Half the rated set current up to 12v
Bulk: Set current up to 14.1v (GEL), 14.4v (AGM), 14.7v (Wet), 14.7v (Calcium)
Absorption: Constant Voltage until Current Drops based on user set current level
Equalisation (Calcium Mode Only): Constant Current 2-3.75a up top 16v. Then hold for 60min or 12 hour timeout.
Analysis: Monitor battery for 90 sec.
Recondition: Constant Current (0.3-5.25a) for 4 hours until 14.1v (Gel), 14.4v (AGM), 16v (Wet), 16v (Calcium)
Float: 13.7v

Power Supply Mode:

Set Voltage: 13.8v DC
Max Current: 35a

12 Months Warranty
