Note:Our wider drop crown triple clamp kit data is based on Talaria Sting MX3 / MX4 / MX5, Sur-Ron Light Bee and Eride Pro product data, all non-standard front wheel cores or modified wheel cores with non-factory data will not fit perfectly.

This kit is the RFLOXA-designed (MAX Drop Crown Triple Clamp) widened clamp solution, compatible with FastAces ALX13RC/AHX12RV forks. The RFLOXA MAX Drop Crown Triple Clamp maximizes the performance of RFLOXA/FastAce forks, improving tire clearance, correcting steering geometry, and providing enhanced impact resistance.

Key Features:

– Robust Impact Resistance: The crowns are made of high-strength aluminum billets. The upper crown features dual-row clamping screws, while the lower crown uses triple-row clamping screws to enhance rigidity and withstand greater road impacts.

– Lightweight Drop Crown Design: The unique hollow design of the upper crown and the overall lightweight engineering reduce weight without sacrificing strength. The drop crown design allows the fork tubes to be lowered beyond the factory position, enabling riders to adjust their preferred riding posture.

– Increased Tire Clearance for Compression: The RFLOXA MAX Drop Crown Triple Clamp features a widened 16mm design, compatible with various tire types. It accommodates tires up to 90mm in width, providing sufficient clearance for fork tubes during compression.

– Flange Spacer: Equipped with an AL7075 high-strength aluminum flange spacer that offsets the brake rotor to the correct position. Its unique 12-screw staggered design includes six screws mounted on the flange spacer and six on the brake rotor, ensuring even force distribution during braking for stronger braking power. Compatible with 203mm rotors or direct mount calipers for 220mm rotors. It can also support additional brake mounts for non-offset setups to fit 220mm, 240mm, or other rotor sizes.

– Multiple Colors: Available in vibrant colors, including black, red, blue, gold, and purple.

– Compatibility: Designed specifically for Talaria Sting MX3 / MX4 / MX5, Sur-Ron Light Bee, and Eride Pro. Note: Compatible with RFLOXA models FCG31RVP/FCG32RCP and FastAce Fork models AHX12RV and ALX13RC. Not compatible with Volar or Rippin Moto braking systems(Compatible with collet adapter).

Features:
– Enhanced impact resistance
– Improved braking power
– Greater rotor compatibility
– Flange spacer offset
– 17mm drop on the upper crown
– 16mm wider than OEM
– Multiple color options

Parts Material Quantity Widened upper and lower clamps +
steering stem CNC Precision Machined 1set Widened front wheel axle Aluminum Alloy 6061 1pcs (customized) Front wheel axle sleeve (left) Aluminum Alloy 6061 1pcs Front wheel axle nut Aluminum Alloy 6061 1pcs Hub washer Aluminum Alloy 7075 1pcs Countersunk hexagon screws 40CR 6pcs Umbrella head phillips screws 40CR 6pcs Bearing for installation 1pcs

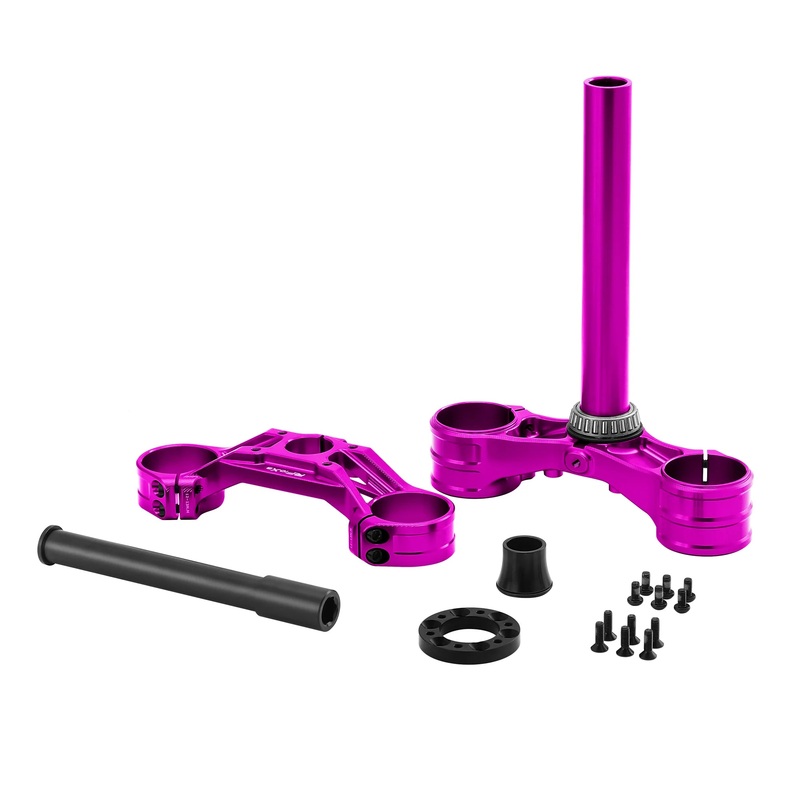

Max Widened Stability — The Max widened version triple clamp includes upper and lower clamps, a steering stem, raised flange, widened front wheel axle kit, and screws, all designed for superior stability and support. The triple clamp and steering stem are available in five color optionsblack, purple, blue, red, and titanium goldwith a matching finish for a seamless look. Crafted using CNC precision machining, this setup ensures durability and an impeccably engineered fit, meeting the demands of high-performance riding.
