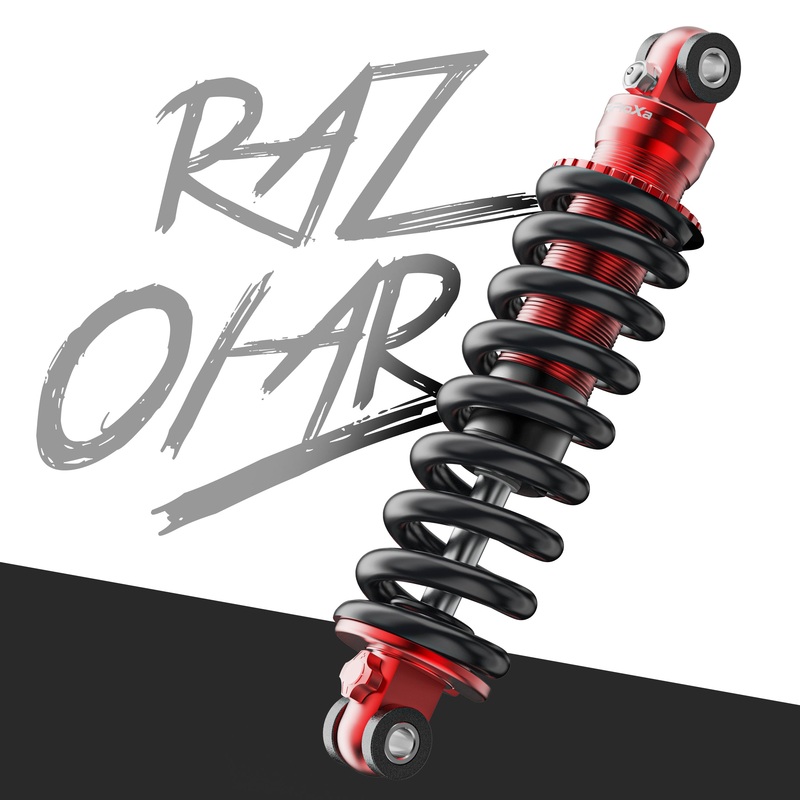

RAZ01AR Rear Shock Absorber

Enhanced Comfort
The RAZ01AR rear shock absorber utilizes an oil-gas separation damping structure combined with a coil to significantly reduce vehicle impact. This advanced design enhances riding comfort and extends the lifespan of bike components.

Wide Application
The RAZ01AR rear suspension is versatile enough to handle a wide range of complex road conditions. Ideal for E-BIKES, bicycles, and scooters, it is available in multiple specifications. If your specific requirements are not listed, contact us for customization.

Multi-Functional Adjustments
The coil spring hardness can be fine-tuned using the toothed disk at the top of the rotating spring. Adjusting downwards makes the spring harder, while upwards makes it softer. The rebound damping adjustment knob allows for further customization based on riding conditions, with “+” indicating faster rebound and “-” indicating slower rebound.

High-Quality Materials
Crafted from AL6061-T6 aluminum alloy and treated with anodic oxidation, the RAZ01AR effectively resists oxidation and wear, enhancing strength and durability. The CNC precision machined upper and lower mounts ensure a secure fit, while the 42CRMO main shaft and 55CRSI spring wire offer robust performance.

Warranty
RFLOXA offers a one-year warranty for the RAZ01AR. If you encounter any quality issues, please contact us for a replacement. We are confident in the quality and performance of our product, which is undoubtedly a cost-effective rear suspension solution. Ensure you carefully measure the required size for your bike’s rear suspension and choose the appropriate specification.

Specifications:

• Center Distance: 150~220mm
• Main Piston Stroke: 31.5~66.5mm
• Main Shaft Diameter: 10mm
• Main Piston Diameter: 22mm
• Applicable Vehicle Types: E-BIKE, Bicycle, Scooter
• Spring Rate: 750LBS

Features:

• Oil-Gas Separation Damping Structure
• Multi-Stage Rebound Damping Adjustment
• AL6061-T6 CNC Precision Machined Upper and Lower Mounts
• AL6061-T6 Aluminum Alloy Main Tube
• 42CRMO Main Shaft
• 55CRSI Spring Wire
• Optimized internal structure for maximum shock travel length (greater travel compared to similar products of the same length)
• Convenient spring removal design
• Smooth and refined rebound damping adjustment with feedback at every stage
