SPECIFICATIONS

Brand Name: sevenlayer

Certification: CE

Choice: yes

Connector Type: LC/UPC

Fiber Type: Single Mode

Hign-concerned Chemical: None

Item Length: 30M

Model Number: JYD-2110SB

Origin: Mainland China

Size: 30*12*3

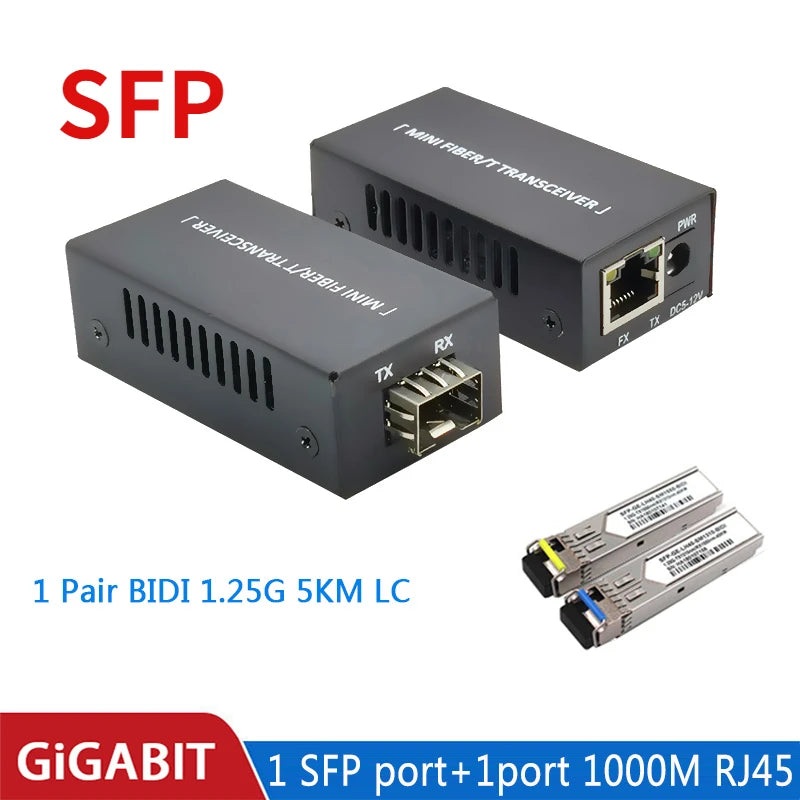

High quality 10/100/1000M Single mode fiber media converter with sc

Description

The SevnlayerEthernet media converters are designed to transmit and receive 10/100 /1000Mbps data over single
mode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, 100 Mbps ,1000MEthernet rate
without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. LED indicators are provided
for rapidly ascertaining equipment operating status.

Features
1. Plug and play, high performance, Low power consumption
2. Compliant with IEEE802.3, IEEE802.3u, IEEE8.3ab,IEEE802.3z
3. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX),IEEE 802.3z/AB
10/100/1000Base-T 1000Base-SX/LX standards
4. Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
5. Automatic MDI/MDI-X crossover
6. Distances up to: Depend on SFP
8. LC optical connectors.
9. DC powered
10.Status LED’s for TX,FX LINK/ACT, POWER,100M,1000M to easily monitor network statu

Technical Specification

ProductName

10/100/1000MSingleFiber,SingleMode,FiberMediaConverter

Model

JYD-2110SB-GE

Standards

IEEE802.3i,IEEE802.3u,IEEE802.3xFlowControl,

IEEE802.1afDTEPowerviaMDI

Wavelength

SingleMode:1310nm,1550nm

Port

OneRJ45port,OneFiber(SC)

NetworkMedia

10BASE-T:Cat3,4,5UTP(100meter)100BASE-TX:Cat5ormoreUTP(100meter)

ForwardMode

Storeandforward

LEDIndicator

PWR:GreenIlluminatedtoindicateunitisoperatingundernormaloperation
TXLink/ACT:GreenIlluminatedindicatesreceivinglinkpulsesfromcompliant

copperdeviceandflasheswhendatabeingsent/received
FXLink/ACT:GreenIlluminatedindicatesreceivinglinkpulsesfromcompliant

fiberdeviceandflasheswhendatabeingsent/received
1000M:GreenIlluminatedwhendatapackets

arebeingtransmittedat1000Mbps

PowerSupply

DC5V1A

Environmentalrequirements

OperatingTemperature:0C~+70C
StorageTemperature:-45C~+95C
RelativeHumidity:0~95%(non-condensing)

TransmissionDistance

Fiber:SingleMode,20km;UTP:Cat.5/6,100m

Diemension

11cm*7cm*2.5cm

1..This model Chipest Realtek
