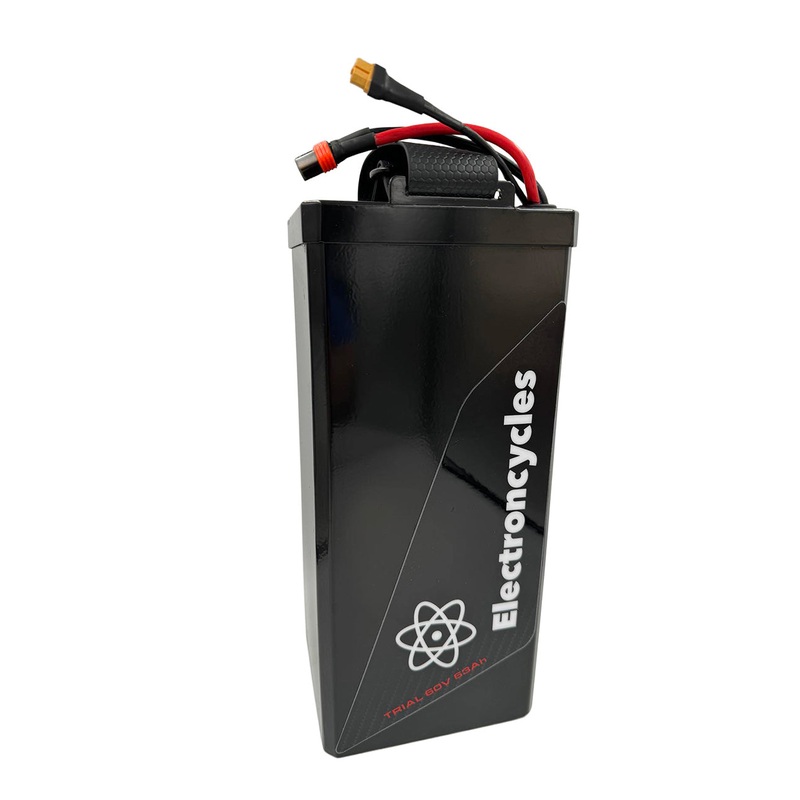

Sur Ron Battery 60v 3900Wh 65Ah Trail V2 Long Range Direct Swap 12KW

ASI, EBMX, VTB, Torp & KO Controllers Compatible

Samsung 21700
Full Function Bluetooth BMS
Lightweight Powerful and only 15.3 KG!
Fully Protected by ANT BMS
Stainless Steel 316 Powder Coated Casing
UK Warranty

Power: Medium (12Kw)
Range: Very High (3960Kwh 264% over OEM)
Height: Medium (353mm)

Sur Ron Battery 60v 65Ah Trail V2 Long Range Direct Swap 12KW

This battery is designed to run on a standard Sur Ron bike as a direct swap in battery, increasing the range by over 200%.

You can use your standard Sur Ron controller (no real power increase just range) or you swap out your controller for an aftermarket controller and set it to 200A DC (for ASI it can be set at 12000W) and phase maximum at 460A.

Can be used with an ASI BAC4000, ASI BAC8000, VTB, EBMX X-9000 or Torp controller (and any other 60v capable controller). This will give you a safe and genuine fast bike that will give heaps of range and fun. This battery is very similar in design to its fast brother (the 72v Race Battery) but uses a different cell and different configuration to give it maximum range without being crazy tall.

Power

This battery will work perfectly with the original Sur Ron standard Controller to give you range which is approximately 200% more than the OEM battery. If you want more power you will need a bigger controller.

If this battery is to be used with an aftermarket controller, the maximum setting is 200A. DC Phase 440PhA and 11000W.

Exoskeleton /Casing

We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.

Connectors

The main battery to controller connectors we use are the same type as used by Sur Ron to keep everything compatible. This allows you to swap your standard battery back should you wish.If you have a 2024 Sur Ronwith the newer round connector, you may have to retro fit the original Sur Ron battery loom (this is easy and cheap to do).

2024 Sur Ron Bikes

Sur Ron in their wisdom have changed the battery connector for the 2024 model. It does not take as much power and is very difficult to obtain. These connectors are not compatible with our batteries (or anyone elses battery). The simple work around is to install a pre 2024 loom. This takes about 30 minutes and is simple to do. If you then want to run your OEM 2024 battery, you will need to purchase an adapter. Most people sell their OEM battery to offset the cost of this much longer range and more powerful battery upgrade. The pre 2024 battery loom can be found here:/product/surron-light-bee-battery-power-cable/

Some versions of the Sur Ron standard controller may go into limp mode if using this battery with no communication port (not using an aftermarket controller). This will need a very simple modification to the plug that normally connects to the battery. Please see the photo of the battery communication connector we supply. This is effectively two pins that are crossed with a simple piece of wire with a spade connector. Note the area circled in red in the photo.

Voltmeter

This Sur Ron Battery does not have an integrated voltmeter. We supply a voltmeter that nestles in your battery lid.

Domestic Electrics

All your bike accessories are still powered. Some believe that not using the circuit breaker direct to the controller removes the safety of the circuit breaker. However, all our batteries have a full working BMS. Any power shorts or irregular current and the BMS shuts down. This is much more sensitive and accurate than a mechanical breaker (you may note that the Sur Ron Ultra Bee does not use a circuit breaker and relies on the BMS alone).

Please note that on L1e Bikes an orange warning light may flicker on the main display and a small error code may appear. There is no fix for this and a consequence of using an aftermarket battery. Use the voltmeter we supply with your battery to keep track of the batteries state of charge empty at 48V.

Specifications

Samsung 21700Bluetooth ANT BMS.Each cell with additional individual wrapping for added protection.Additional layers of fiber board, Kapton tape, heat shrink.Stainless steel 316 grade sealed casing/exoskeleton with internal/external powder coated to give maximum protection and insulation.Double sandwich configuration using 0.2mm pure welded Nickel sheet.Bluetooth BMS giving individual series condition with balanced charging and on/off function via a mobile device (we recommend always leaving on never use SHUTDOWN)An integrated cord handle for lowering the battery in and out.Battery gauge not need if buying an aftermarket controller with a volt display.Weight 15.3KgHeight 353mm

Fitting

This battery is designed to fit straight into the bike and maximize the whole battery compartment. The hatch bolts will need swapping out with slightly longer bolts and a lid lifting kit that we supply free of charge.

Connecting To Bike

When connecting the battery to the bike and to avoid a spark, turn the red trip switch on the bike to off. Connect the older original power cable and then turn the red trip to on. Then connect the new power leads. Removing the battery has no special order.

Battery Charging

The charging port of this battery is via an XT60 connector with a free adapter supplied to go straight onto your original Sur Ron OEM charger.
Your Sur Ron OEM charger will recharge the battery, but to get the full range out of this battery, you will need to purchase our 60V charger or our Recovery Charger. The standard SR charger can only go as low as 54V yet this battery can go as low as 48V.

First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a Connection Spark. The battery needs a Balance Charge on first charge. Please charge for 12 hours first time. Always charge your battery in a safe place and never unsupervised.

Charger NOT Included

Our recommended charger for this battery is here: /product/charger-60v-67v-10a-suitable-for-electron-sur-ron-talaria-60v-63ah/

Our Recovery Charger can be found here: /product/sur-ron-recovery-charger-for-bypass-mod-going-lower-than-54v-flat-battery/

Bike Not Included
