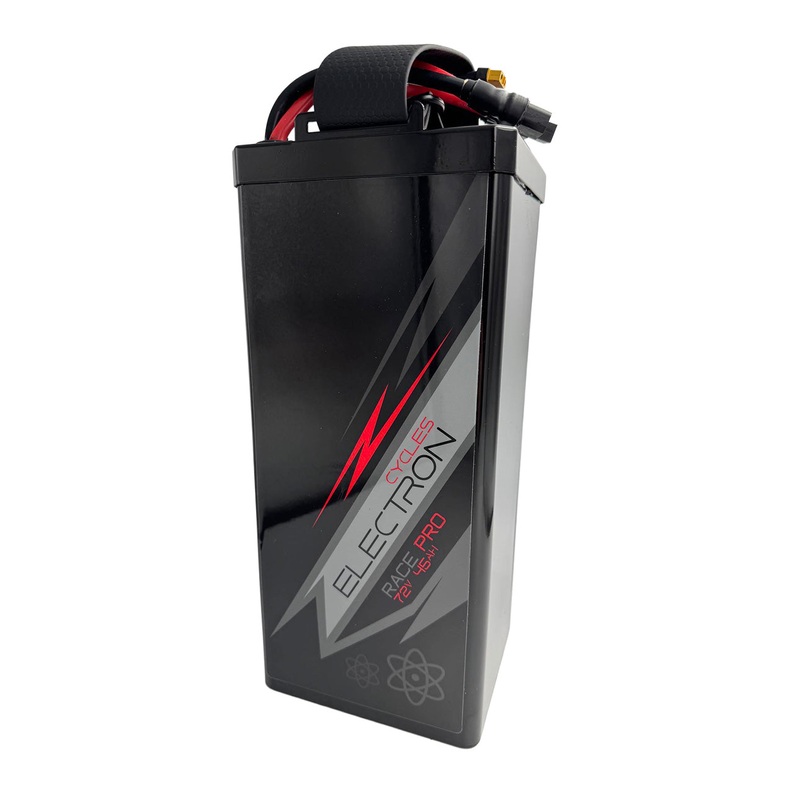

Sur Ron Battery 72v 45Ah Race Pro Molicel P45b 35Kw

ASI, EBMX, VTB, Torp & Nucular Controller Compatible

Packed Small, BIG PUNCH!!

Extreme Power Long Range 3240Wh
Molicel P45b 21700 Cylindrical Cells
Tough Protective 316 Stainless Steel Case
Fully Protected 220A/550A BMS
Parallel Discharge QS8 Connectors
Free High Power Loom
*UK Warranty

Power: Very High (32.5Kw)
Range: High (3240Kwh over double OEM))
Height: Medium (353mm, 5mm over OEM)

Battery Activation Required On Delivery

On delivery, please send us a request to have your battery activated.
This will also be regarded as confirmation that your battery has been received.

Sur Ron Battery 72v 45Ah Race Pro Molicel P45b 35Kw. This is the big power daddy to the Race V3 42Ah. It gives HUGE power for its size keeping the bike light and nibble. It sits just 5mm higher than the OEM battery in the bike. This is a truly incredible piece of engineering. The build list is like a dream: Molicel P45b cells these are the very best cells second only to the illusive and more expensive P50b cells which are under ration from Molicel. With pure copper sheet connections, an Hybrid ANT 550 BMS (220A/550A) and stainless steel 316 marine grade casing.

Cells

There are 200 cells in this battery and all have internal resistance. The more resistance, the more heat they produce, until they start to damage. The Molicel P45b is classed as the worlds No2 premier cell (only surpassed by its big and hugely more expensive big brother the rare Molicel p50b) for low resistance for a high power density (Ah). So with this low resistance, they are able to supply enormous amounts of power without over heating.

Power

Sur Ron Battery 72v 45Ah Race Pro Molicel P45b 35Kw power as limited by the 450A (peak burst) by the Ant 550 BMS.

Exoskeleton / Casing

We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.

Connectors

The main Sur Ron Battery to controller connectors we use are two QS8 connectors with 6 AWG going direct into the controller and a second smaller 8 AWG QS8 connector with a free high power loom that goes via the red trip. We use two sets to share parallel the power. This reduces heat, transfers load more efficiently and keeps the connectors from overheating.

Domestic Electrics

This means all your bike accessories are still powered. Some believe that not using the circuit breaker direct to the controller removes the safety of the circuit breaker. However, all our batteries have a full working BMS. Any power shorts or irregular current and the BMS shuts down. This is much more sensitive and accurate than a mechanical breaker (you may note, for example that the Sur Ron Ultra Bee does not use a circuit breaker and relies on the BMS alone).

Fitting

The battery uses two sets of discharge cables. One to fit the original bikes connector (for Talaria we supply an adapter so it can also fit a Sur Ron too). The second goes to an additional cable that we provide that is fixed direct to the controller. This enables the power to be fed In Parallel increasing the electrical flow, reducing resistance and reducing harmful heat. It shares the power delivery and takes the strain away from the original loom. These must be connected in a specific order (simple instructions supplied).

For those using a Torp Controller, Torp do not like direct power to the controller via your second cable. You can either not use the additional power cable we supply (we do not like to remove these as often buyers transfer batteries to another bike) or, if you are worried about your Torp warranty, you can request one of our 2 into 1 convertors in the checkout notes.Details of the adapter can be found here:/product/two-into-one-converter-qs8-supra-d6-talaria-oem-any-combination-available/

Specifications Sur Ron Battery

Weight 16.8.2KGCells Molicel P45b 21700 (200).BMS set at 550 Amps Peak. Full battery protection including over discharge (shorts) over heating etc.Each cell with additional individual wrapping for added protection.Additional layers of fibre board, Kapton tape, heat shrink.Stainless steel 316 grade sealed casing/exoskeleton with internal/external powder coated to give maximum protection and insulation.Pure copper sheet connections.Bluetooth BMS giving individual series condition with balanced charging (we do not recommend altering our settings as may invalidate your warranty).An integrated cord handle for lowering the battery in and out.Charging port via an XT60 connector.Battery lid hinge extenders for Sur Ron.Height 353mm to top of lid not including handles

Cell Specifications

Brand: Molicel
Model: P45b
Size: 21700
Chemistry: INR
Nominal Capacity: 4500mAh
Nominal Voltage: 3.6V
Discharge: 36A Continuous per cell Max 45A
Positive: Flat/Button Top/Tabs (please select)
Rechargeable: Yes
Dimensions: 21.1mm x 70.4mm

Connecting To Bike

When connecting the battery to the bike and to avoid a spark, turn the red trip switch on the bike to off. Connect the older original power cable and then turn the red trip to on. Then connect the new power leads. Removing the battery has no special order.

Battery Charging

First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a Connection Spark. The battery needs a Balance Charge on first charge. Please charge for 12 hours first time. Always charge your battery in a safe place and never unsupervised.

Charger NOT Included

Our recommended charger for this battery is: /product/charger-72v-84v-8a-for-large-batteries-suitable-for-72v-sur-ron-talaria/

This Battery will not work with an original standard Sur Ron Controller

Bike Not Included
