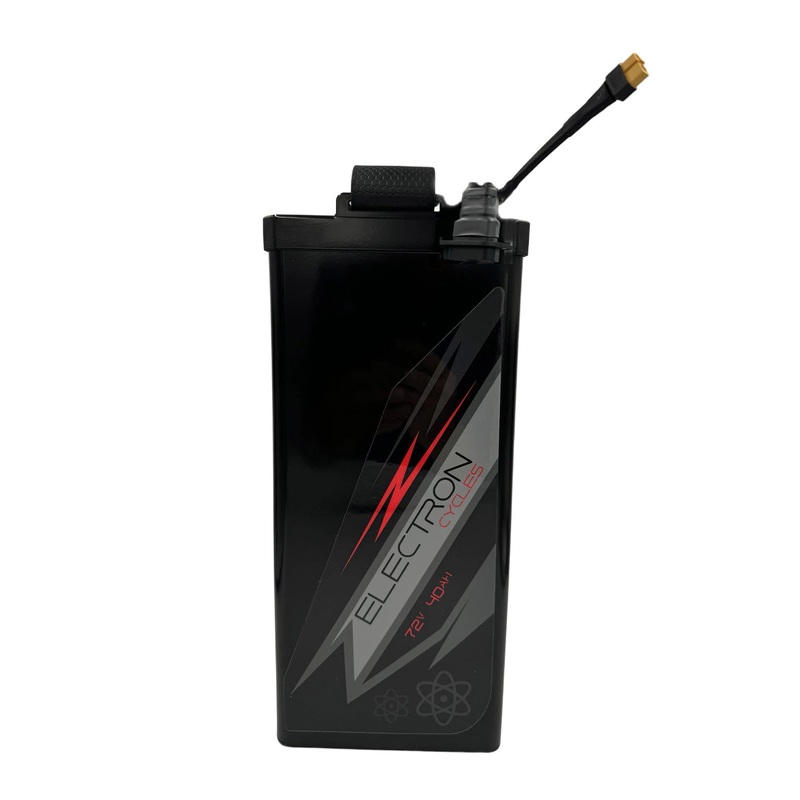

Talaria Battery 72v 40Ah

Medium Power 15Kw 2900Wh

Tough Protective 316 Stainless Steel Case
Only 16.5Kg
Fully Protected BMS
*UK Warranty

Power: Medium High
Range: High
Height: Low (350mm)

Battery Activation Required On Delivery

On delivery, please send us a request to have your battery activated.
This will also be regarded as confirmation that your battery has been received.

Talaria Battery 72v 40Ah Medium High Power 14Kw

Designed to run with an after market controller like the Torp TC500 or KO Nano or any medium power controller that can utilise the extra RPM from the higher voltage. This creates more top speed and if you are using a bigger rear sprocket you can turn the extra RPM into torque. Expect top speeds of around 70mph (example is a 12 stone rider using an ASI BAC4000, on OEM tyres and a 54T sprocket).

This battery will give you a genuine fast bike that will give heaps of range and fun. Perfect for trail riding when you want a fast and usable light bike.

Power

These batteries are designed to go straight into a standard battery compartment with a small battery lid spacer that we provide. Power should be set at 200A DC (15Kw) and 500 Phase.

Exoskeleton / Casing

We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.

Connectors

For the main battery to controller connector we use the same type of plug as used by Talaria, but we use two sets to share parallel the power. This reduces heat, transfers load more efficiently and keeps the connectors from overheating.

One direct set of discharge cables goes to the controller via a high capacity QS8 connector using very large 6 AWG cables. This reduces internal resistance and heat build up. A separate second set of discharge cables using the original 8 AWG cable via a Talaria OEM plug connects to the OEM loom via the circuit breaker.

Specifications Talaria Battery

SKI 40Ah20s BatteryNominal Voltage: 72VHVC: 84VLVC: 59VWeight 16.5KgDC line 165A burst 200A for 30 seconds onlyMax Power rating (Discharge): 15,000 WattsMax Phase Amps: 500AHeight 350mmBMS monitoring individual series condition with balanced chargingAn integrated cord handle for lowering the battery in and out.

Connecting To Bike

When connecting the battery to the bike and to avoid a spark, turn the red trip switch on the bike to off. Connect the older original power cable and then turn the red trip to on. Then connect the new power leads. Removing the battery has no special order.

Battery Charging

First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a Connection Spark. The battery needs a Balance Charge on first charge. Please charge for 12 hours first time. Always charge your battery in a safe place and never unsupervised.

Charger NOT Included

This Battery will not work with an original standard Talaria Controller

Bike Not Included
