SPECIFICATIONS

Application: Computer

Brand Name: ICGOICIC

Choice: yes

Condition: New

Dissipation Power: n/a

Hign-concerned Chemical: None

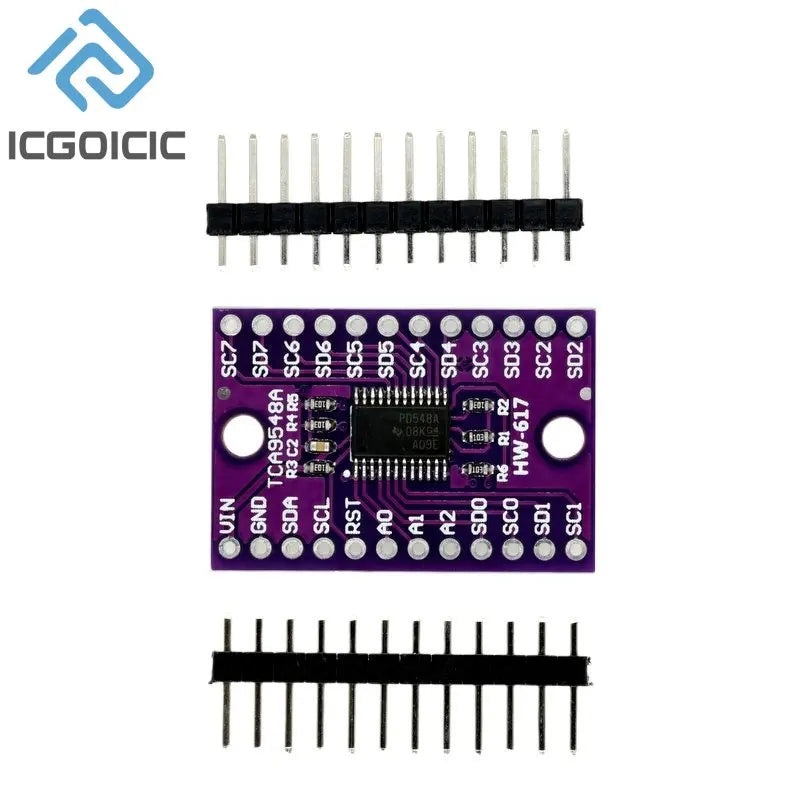

Model Number: TCA9548A

Operating Temperature: n/a

Origin: Mainland China

Package: SMD

Supply Voltage: n/a

Type: Module

is_customized: Yes

Product characteristics

-8-out-of-1 bidirectional transfer switch

-Compatible with l 2 C bus and system management bus SMBus

-Active low reset input

–Up to eight are used on the l 2 C bus through three hardware

–address pins Pca9548a device

-Selection via l 2 C bus channel

-All switch channels are deselected when powered on

-Low R on switch

-support

Voltage level conversion between 1.8v,2.5V,3.3v and 5v

buses

-No burr pulse during power on

-support hot insertion

-Low standby current

-The operating power supply voltage range is 2.3v to 5.5V

-5V withstand voltage input

-Okhz to 400kHz clock frequency

-Latch performance exceeds 100mA required by jesd 78 type llspecification

Electrostatic discharge(ESD) protection performance exceedsthe requirements of jesd 22 specification seek

– 2000v human discharge model (a114-a)

– 20ov machine model (a115-a)

– 10oov charger model(C101)
