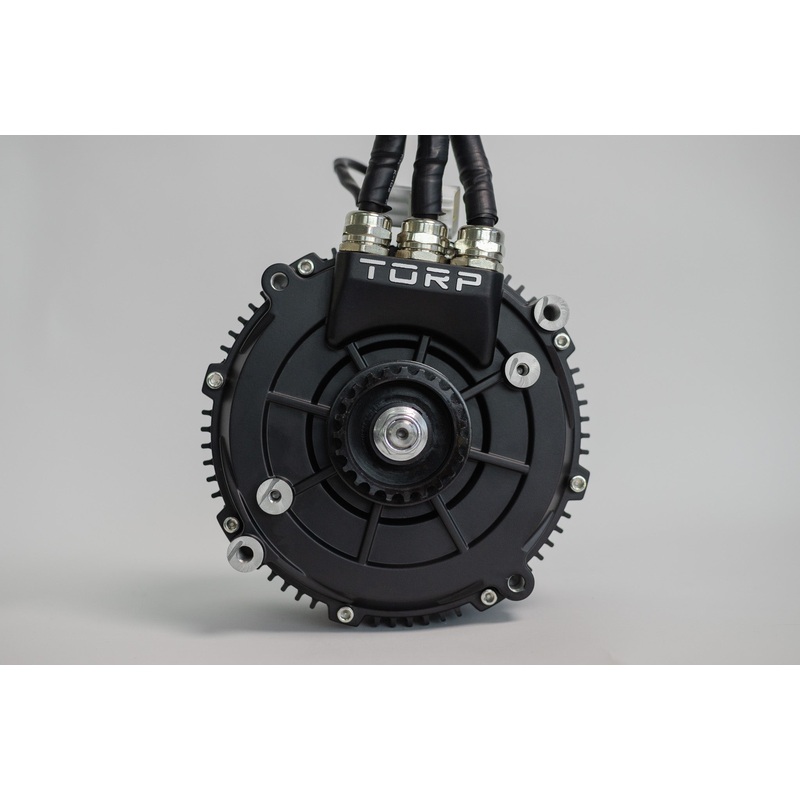

Powerful, light, and affordable: The Torp TM25 motor is the ultimate upgrade for your SurRon Light Bee.

Description

What makes the TM25 motor unique?

-Various mounting points make it possible to be used with other electric vehicles

-Works with Hall sensors and encoder, which makes it compatible with different controllers

-Has 3 times less resistance compared to the stock SurRon motor.

-Compatible both with theTC500* andTC1000controller

*IMPORTANT:TM25 motor is NOT COMPATIBLE with Torp TC500 controller HW 1.0, 1.1. and 1.2. HW version of your controller is written on the silver sticker at the side of the controller. In case you own one of these versions and wish to buy the TM25 motor, please contact us directly.

Technical specifications:

• Motor type: IPM
• Voltage: 48V 120V
• Continuous Power: 13 kW
• Peak Power:
  on 72V 27 kW
  on 80V 31 kW
  on 120V 40 kW
• Rated Speed: 6000 RPM
• Max RPM: 10 000 RPM
• Position sensor: Hall sensor or Encoder
• Encoder points: 1024 (4096)
• Max magnet temp: 150 C
• Phase current: up to 700 A
• Kt constant [Nm/A]: 0.105
• Torque 500 A: 52.5 Nm
• Torque 700 A: 67 Nm
• KV rating: 85
• Motor Resistance: 3,4 mO
• Temp. sensor: PT1000
• Efficiency: up to 95%
• Protection class: IP67*
• Weight: 10 kg
• Motor Size: 115*165 mm
• Installation: Mid
• Number of pole pairs: 5
• Cooling method: Air

*Our products have an IP67 rating, achieved by testing in distilled water under laboratory conditions. Please note that this rating does not imply suitability for continuous underwater use as it may result in damage. Additionally, the connectors on the product are not waterproof and must be kept dry to ensure proper functionality and safety.
